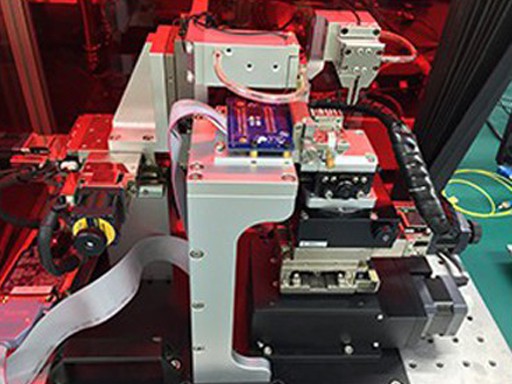

Our automatic 40G/100G QSFP+ transceiver alignment system QSFP800 Tx/Rx adopts high precision stainless steel .
• For 40G/100G QSFP+ transceivers volume production
• Transmission,reflection mode options
• High precision motorized stage
• 12/8/5/4-axis intelligent controller
• Powerful data processing
• 100% comply with customized manufacturing process
• Position sensors to guarantee motion accuracy
• User-friendly software interface
• Compact design, economic choice
Order information and specification:
|
Model |
QSFP800-Tx/Rx |
|
Alignment duration |
Customized |
|
Travel range (X,Y) |
15mm |
|
Travel range (Z) |
25mm |
|
Travel range (Θx, Θy) |
10° |
|
Linear motion accuracy |
0.1μm |
|
Angular motion accuracy |
0.0001 o |
|
Compatible function |
Bar-code input, data storage |
